KCF Locator Pins for Nut / Projection Welding Durable and Cost-effective M4/M5/M6/M8
1 . Descriptions:
Locator pin can be supplied in different materials: ceramic,KCF and stainless steel.KCF is a special heat treated alloy with a hard,insulation skin which lasts much longer than ceramic through with higher initial price.Bloom offers a range of standard designs while special designs can also be made to order.
KCF material is a kind of special metal.By the way of special heat treatment process and process temperature range of 1000-1500 degree adjustment,the surface can generate a layer of 10-32μm thick high-quality insulation layer,the insulation layer and the alloy matrix has a good ability to combine.So that the material takes into account the good wear resistance and high insulation resistance.The material in the mechanical processing after formation of a variety of parts,after cleaning and heat treatment with insulation,wear and anti-oxidation of the three functions of the product.This material is mainly used in resistance welding equipment.
We generally use ceramic guide pins as a welding nut positioning pin, but because of the toughness of ceramics is poor, fragile, so now KCF guide pin instead of ceramic is more and more popular.
2 . KCF Guide Pin Technical Specification
Pin Material: KCF,AL2O3,ZrO2,Si3N4,Ceramic,Stainless Steel etc.
KCF Pins Diameter:M4,M5,M6,M8,M10,M12…
Application: KCF guide pins are widely used on projection welding,nut welding,stud welding
3 . Advantages:
▲high temperature strength
▲superior thermal shock resistance
▲ excellent wear resistance
▲good inusltaion surface
▲ Excellent non-wetting property with good oxidation resistance
▲ It is convenient to process the rod shape, and the period will be shorter

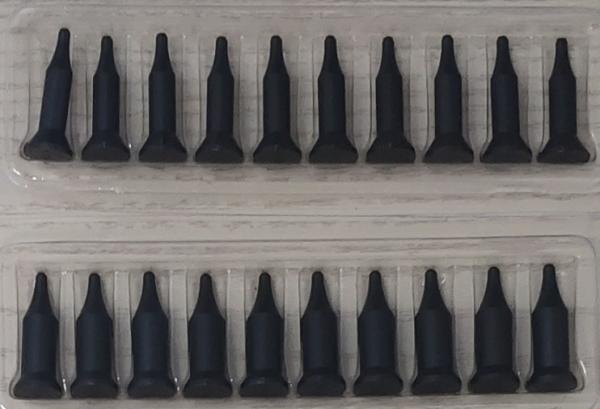

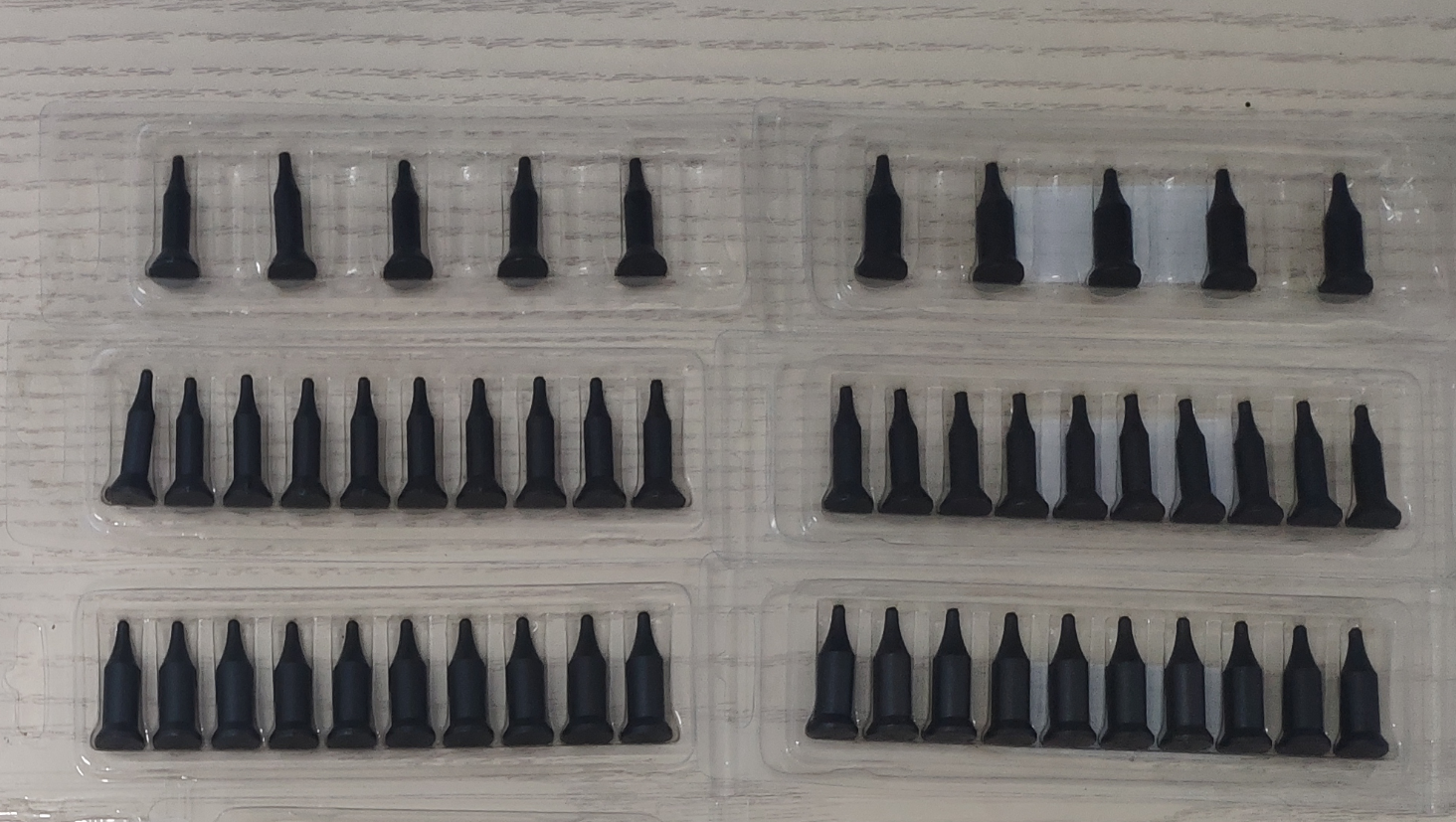

4 . More pictures
